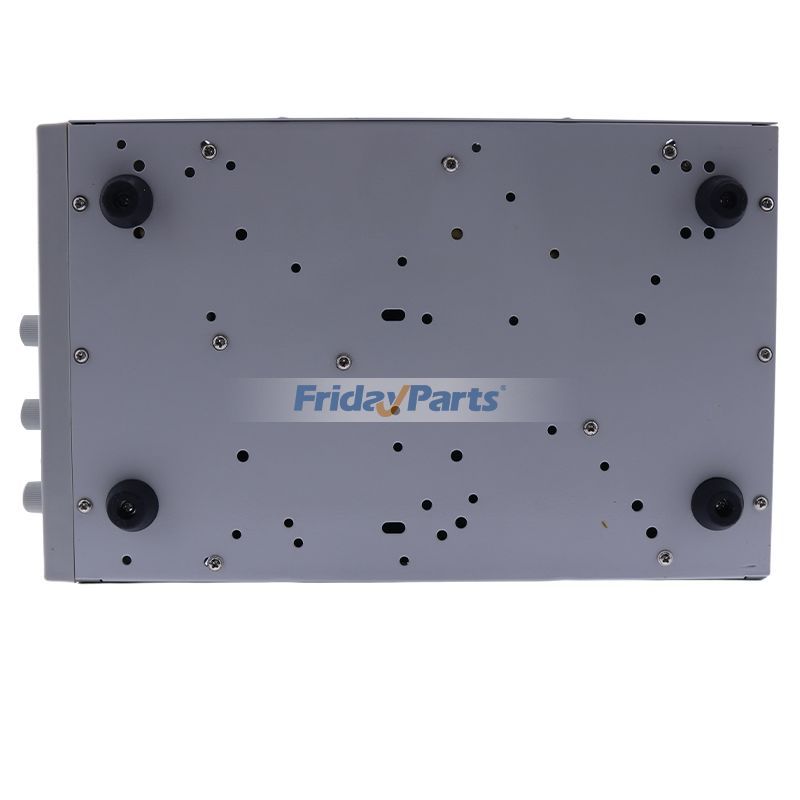

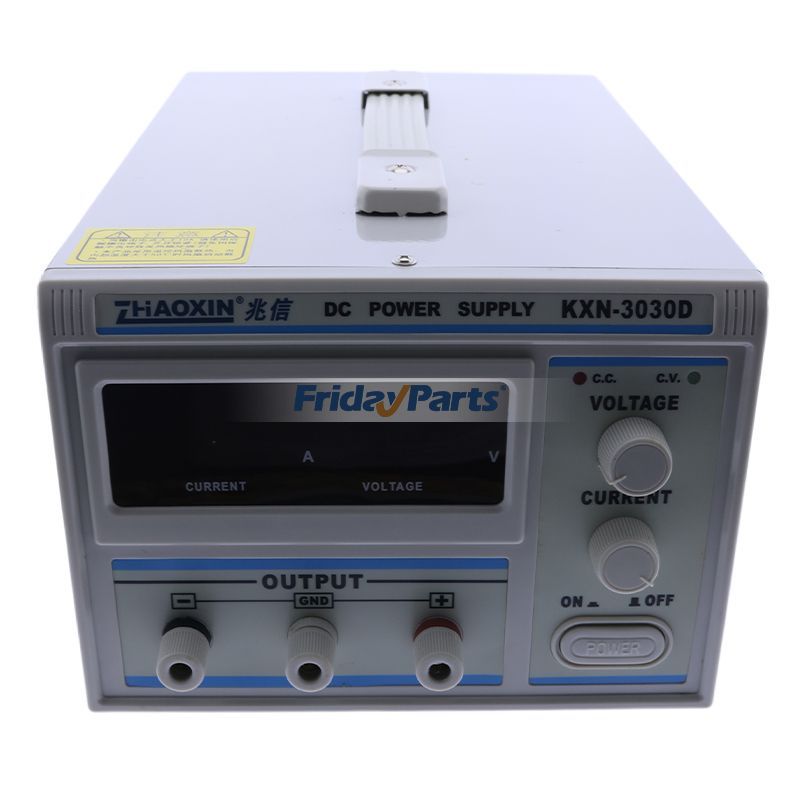

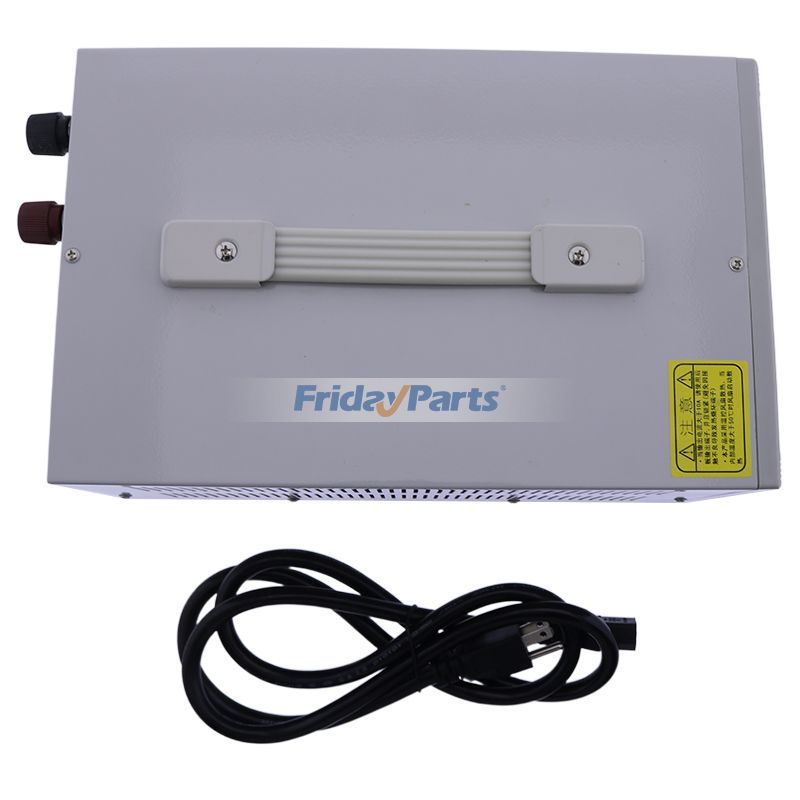

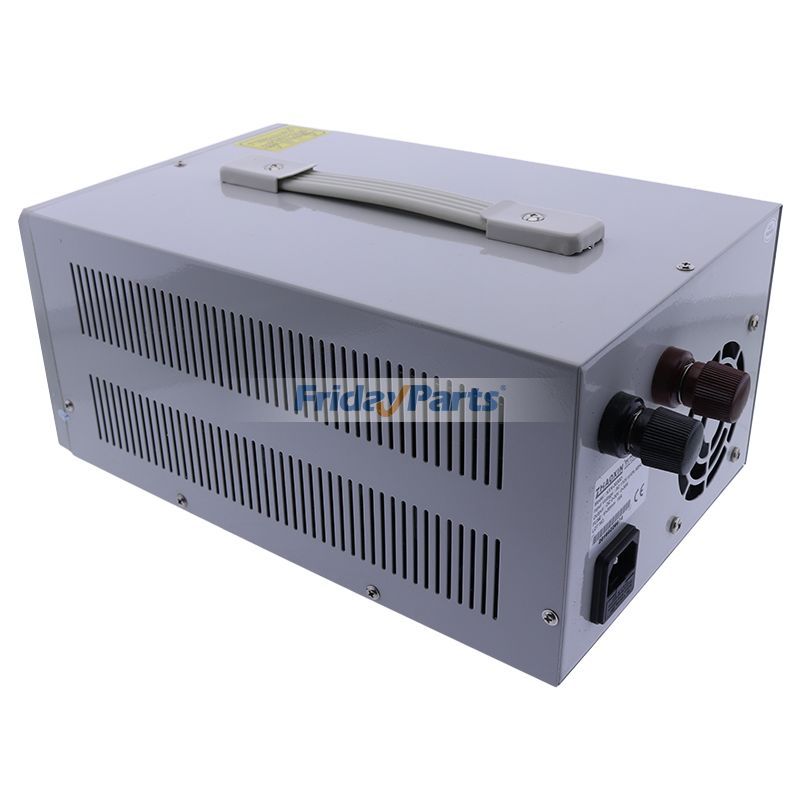

0-30V 0-30A 900W Output High Power Adjustable DC Switching Power Supply KXN-3030D
Replace Part Number:KXN-3030D,KXN3030D
Specification:
Model:KXN-3030D
Voltage Output :0-30V
Current output:0-30A
Size:366mm x 198mm x 158mm(L x W x H)
Input voltage:AC 220V±10% 50Hz
AC input fuse:7A
Work temperature:-10℃ ～ 40℃, Relative humidity ＜90%
Storage temperature:-10℃ ～ 40℃, Relative humidity ＜80%
Efficiency:≥86%
Voltage stability:≤0.5%
Load stability:≤0.5%
Ripple voltage:≤0.5% V p-p
100Hz ripple voltage:≤300mV
Insulation resistance:≥20MΩ
Withstand voltage from input voltage to casing:≥AC 1500V
Withstand voltage from input voltage to output voltage:≥AC 1500V
MTBF:≥50000h
Boot buffer delay:3-5s
Overheat protect threshold value:75-85℃
Description:
1. The output voltage and output current between 0 to rated value continuously adjustable
2. Constant-voltage and constant current can be automated conversion.
3. Allow long time short-circuit under certain circumstances.
4. Overload and reverse polarity protection keep power supply and its loads safe from unexpected conditions.
5. LED digital display output voltage and output current.
6. Cooling fan is connective with temperature sensor,which can reduce the fan speed automatically when the internal temperature
or load decreases to prevent the additional noise.
| Brand: | FridayParts |
| Compatible Model Brand: | For OTHER BRAND |
| Replacement Part Number: | KXN-3030D,KXN3030D |
