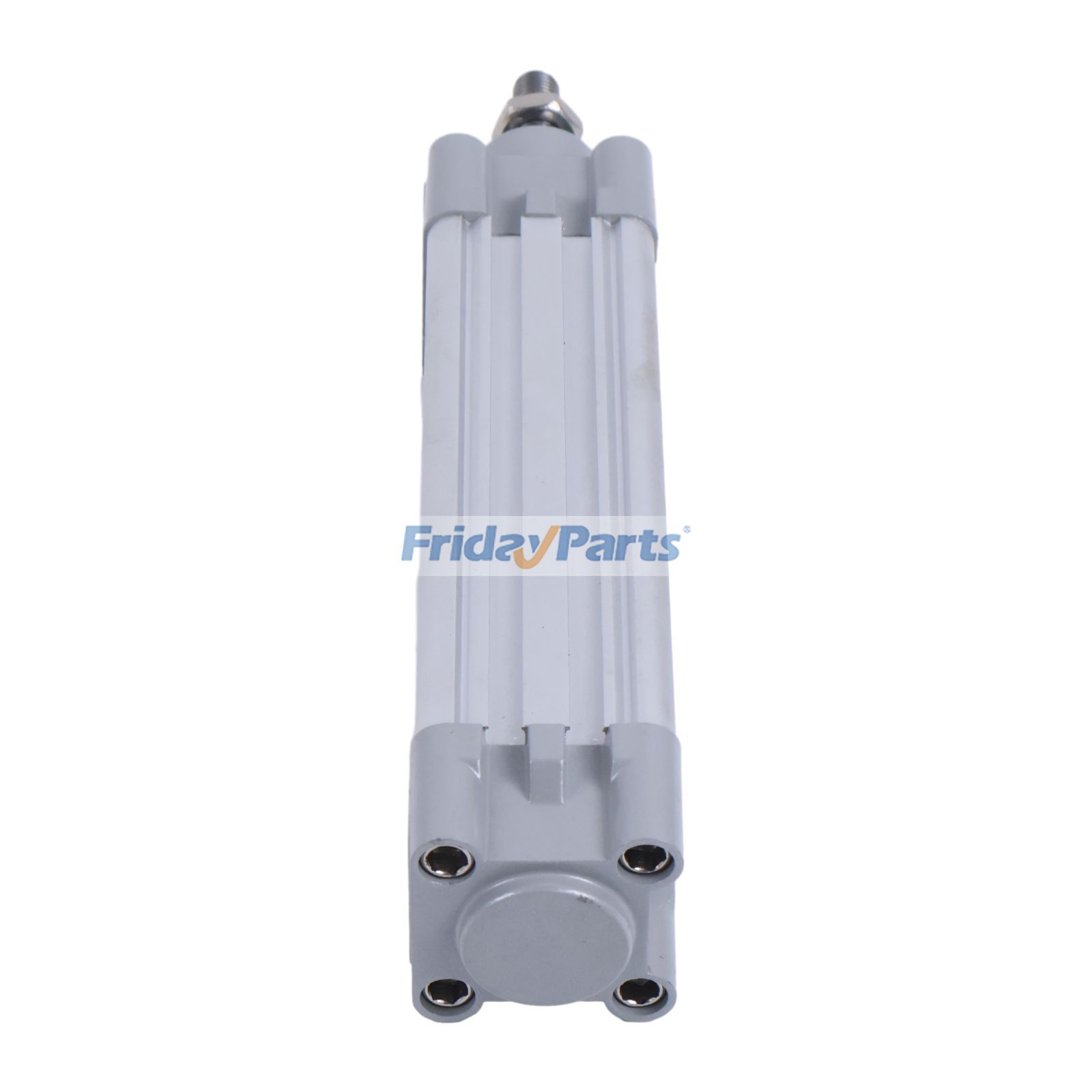

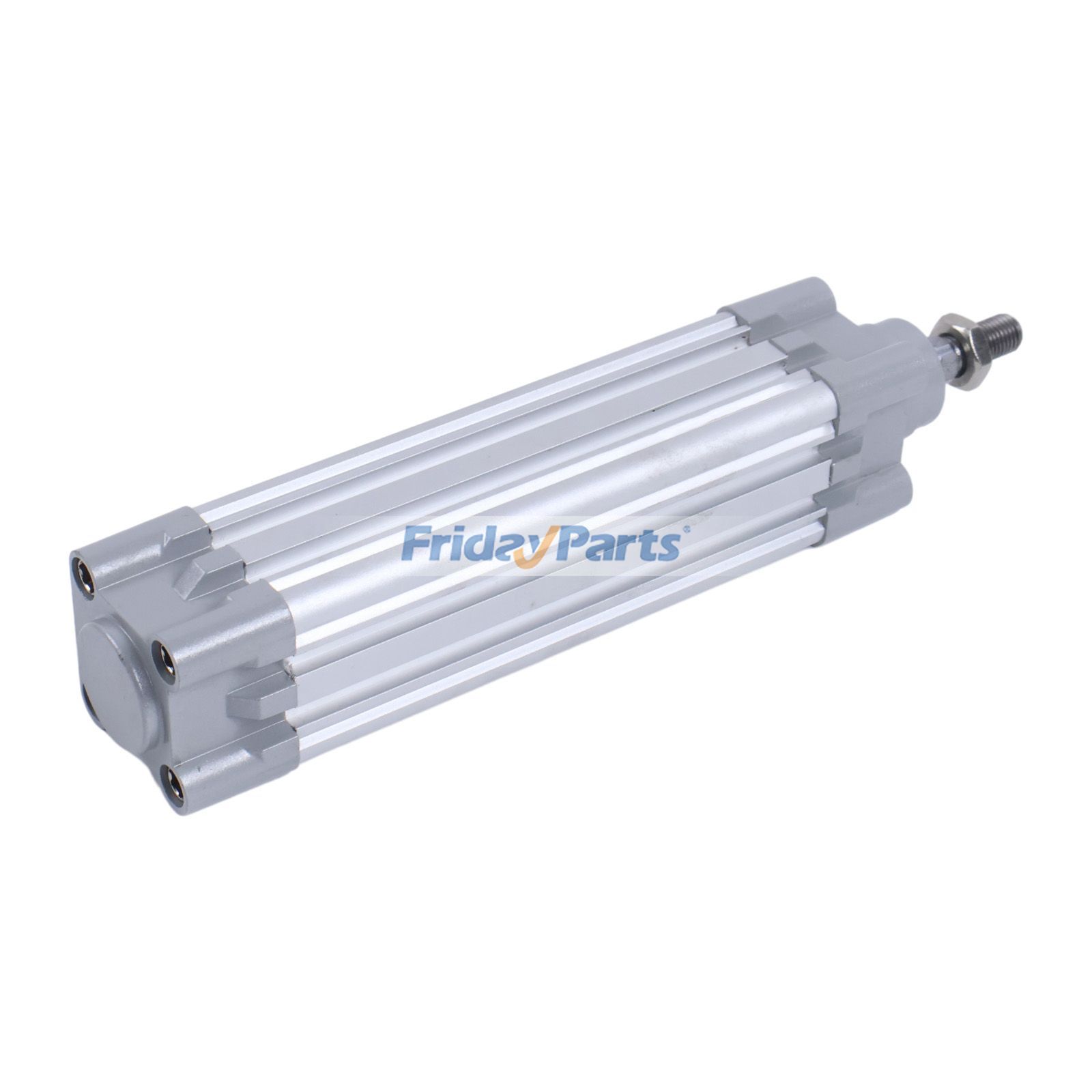

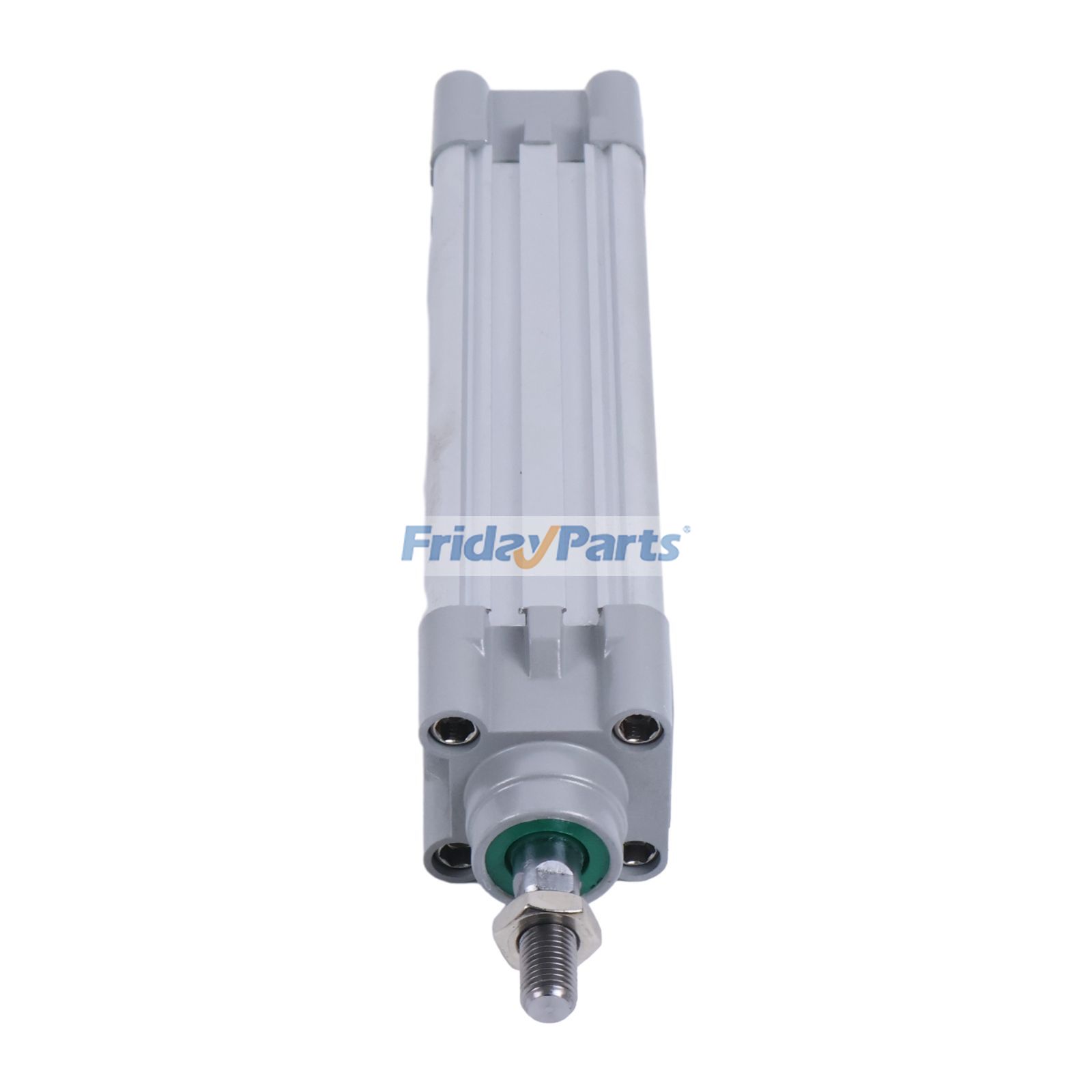

Aftermarket Festo DNC-32-100-PPV-A 163309 Pneumatic Cylinder for Automation Systems Industrial Equipment

Aftermarket Festo DNC-32-100-PPV-A 163309 Pneumatic Cylinder for Automation Systems Industrial Equipment

Replacement Part Number: DNC-32-100-PPV-A, DNC32100PPVA, 163309

Specification:
Stroke: 100 mm
Piston diameter: 32 mm
Piston rod thread: M10x1.25
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: optional
Conforms to standard: ISO 15552
Piston-rod end: Male thread
Position detection: Via proximity switch
Variants: Piston rod at one end
Operating pressure: 0.06 MPa...1.2 MPa 0.6 bar...12 bar
Mode of operation: Double-acting
Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will
always be required)
Corrosion resistance class CRC: 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...80 °C
Impact energy in end positions: 0.1 J
Cushioning length: 20 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 483 N
Moving mass for 0 mm stroke: 162 g
Additional moving mass per 10 mm stroke: 9 g
Basic weight for 0 mm stroke: 517 g
Additional weight per 10 mm stroke: 30 g
Type of mounting: Via female thread With accessories
Pneumatic connection: G1/8
Note on materials: RoHS-compliant

Application:
Fit for Automation Systems Industrial Equipment and so on machines with Festo Pneumatic Cylinder DNC-32-100-PPV-A 163309.
