Choosing the right battery for your UTV is important for safe and reliable performance. If the battery doesn’t fit correctly, it can shake, get damaged, or leave you stuck far from home. This guide explains in plain language how to read battery codes and use a UTV battery size chart. You’ll learn simple steps to find the right battery for your machine so you can get back to the trail quickly.
Why Is the Correct Battery Size So Important?
The right battery size keeps your UTV safe and running smoothly. If the battery is too big, it won’t fit in the space provided. If it’s too small, it can move around and vibrate, which shortens the battery’s life and may damage it from the inside. Choosing the right battery group size ensures the battery fits perfectly, attaches firmly, and gives your machine the power it was designed for.
How to Read UTV Battery Codes
UTV battery codes may look confusing at first, but they follow a simple pattern. They tell you the battery’s size, type, and power. Learning how to understand them helps you find the right replacement easily.
What Do the Letters and Numbers Mean?

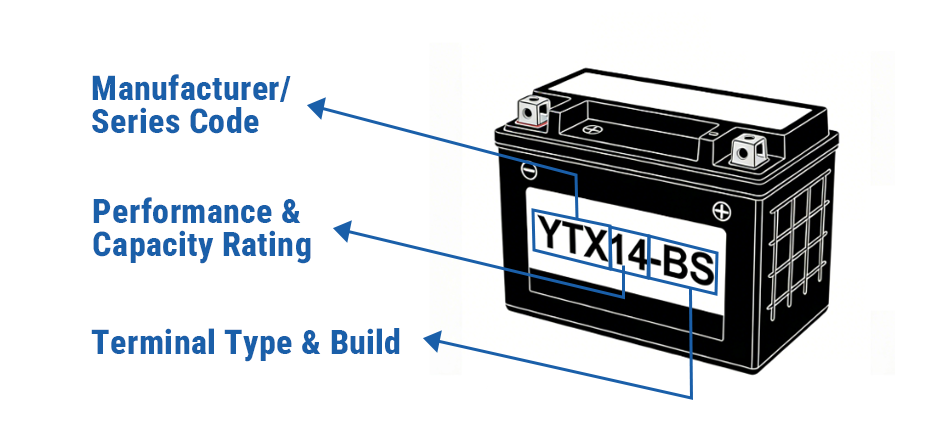

Let’s look at an example battery code: YTX14-BS
- YTX: These letters show the manufacturer’s type code. You might also see CTX or PTX. The letters can change, but they still refer to the same size format.
- 14: This number tells you the battery’s power and capacity. It’s one of the most important parts of the code. A 14-series battery gives different power than a 20- or 30-series one.
- -BS: This end part shows how the battery is built. “BS” means “Bottle Supplied,” which means the battery is sealed and ready to install.
Think of a battery code as your machine’s “ID card.” It describes exactly what size and type you need for a perfect fit.
3 Simple Ways to Find Your UTV Battery Size
You can find your correct battery size quickly by using one of these three simple methods.
Method 1: Check Your Old Battery
The easiest way is to look at your existing battery. The size code (like YTX20L-BS or YB14A-A2) is almost always printed on the label or top of the battery. Write that code down so you can get the same type for replacement.
Method 2: Consult Your Owner’s Manual
Your UTV’s owner’s manual is one of the most reliable sources. Check the “Specifications” or “Maintenance” section. It will list the correct battery group size for your model. This helps you find the right battery without guessing.
Method 3: Measure the Battery and Compartment
If you can’t read your old battery’s label and don’t have the manual, measuring works, too. Use a tape measure to check the battery’s length, width, and height. Also note where the positive (+) and negative (-) terminals are. Then look for a replacement that has the same size and terminal layout so it fits perfectly in the tray.
What Is a UTV Battery Size Chart?
A UTV battery size chart is a reference table that helps you match your UTV make and model with the right battery size. Because UTVs vary, there isn’t one universal chart for all models, but these tables help you find what fits best.
Here’s a simple example:
| UTV Model | Common Battery Group Size |
|---|---|
| Polaris Ranger XP 1000 | YTX14-BS |
| Can-Am Defender HD10 | YTX20L-BS |
| Honda Pioneer 1000 | YTX14-BS |
| Kawasaki Mule PRO-FXT | GYZ20L |
| Yamaha Wolverine RMAX2 1000 | YTX20-BS |
Note: Always double-check your UTV’s model year. Battery requirements can change slightly from one year to another.
When Should You Replace Your UTV Battery?
All batteries give warning signs before they stop working completely. If you know what to look for, you can replace the battery before it fails on the trail.
- Slow Engine Crank: If the engine turns slowly when you try to start it, the battery is weak. However, this could also be due to bad starter symptoms, so it’s good to know how to differentiate.
- Dimming Lights and Accessories: Headlights or winches that lose power show the battery can’t hold a full charge.
- Visible Damage: Cracks, leaks, or rusted terminals mean the battery is unsafe.
- Old Age: Most UTV batteries last 3–5 years. If yours is older, it’s smart to plan for a new one soon.
Your Next Step
Finding the right UTV battery size is simple once you know how to check it. You can use your old battery, your manual, or a few quick measurements to find the perfect match. The correct battery gives your UTV steady power and reliable performance on every trip.
