There are so many faulty codes, and it’s hard to remember everything. That’s why this guide comes. What is code p0128? What does it mean? And how to fix it? Don’t worry, one guide has you covered. This guide explains the common causes & solutions of code P0128, helping your equipment run smoothly and effectively.
What Does Code P0128 Mean?

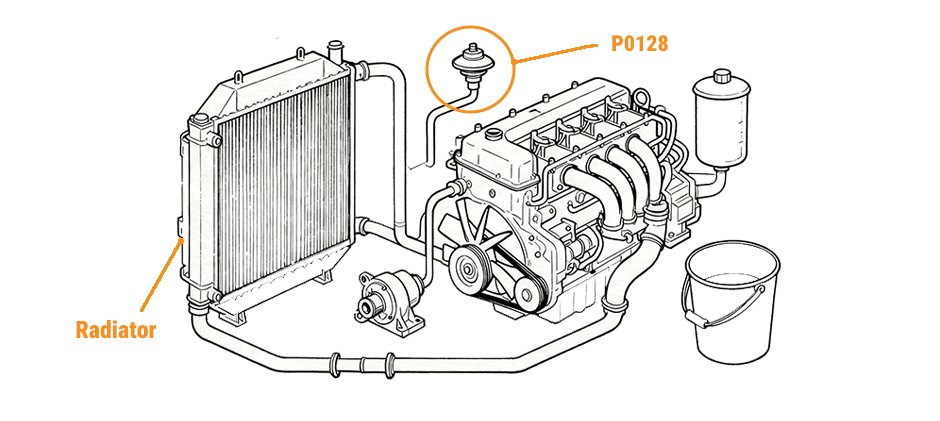

Diagnostic trouble code (DTC) P0128: “Coolant Thermostat Temperature Below Regulating Temperature.”
In simple terms: Your engine isn’t warming up fast enough or staying too cool after startup.
The Engine Control Module (ECM) expects coolant temperature to reach the normal operating range — about 180–210°F (82–99°C) — within a specific time after starting. Specifically, the ECM compares the initial Engine Coolant Temperature (ECT) sensor reading with the Intake Air Temperature (IAT) sensor reading on a cold start; they should be nearly identical. It then monitors how quickly the ECT rises. If it takes too long or never reaches that range, the ECM logs P0128 and turns on the Check Engine Light.
This usually points to a stuck‑open thermostat, low coolant, or a faulty temperature sensor. While not immediately dangerous, running too cool can hurt efficiency, increase wear, and cause emission problems over time.
Common Symptoms of Code P0128
When your equipment has a P0128 code, you might notice:
- Extended warm‑up time. The temperature gauge climbs very slowly.
- Cooler‑than‑normal temperature reading. The needle stays low even after a long run.
- Weak cab heater performance. The air never gets truly hot.
- Worse fuel efficiency. The ECM enriches the mixture to compensate for low temperature.
- The cooling fan is running constantly. Some systems trigger high fan speed as a failsafe mode.
Can You Keep Operating with a P0128 Code?
Short term: Yes. You can usually finish the task or return to your workshop safely.
Long term: No. Running too cool causes several hidden issues:
- Incomplete combustion → fuel dilution in oil and accelerated engine wear
- Carbon buildup on valves and injectors
- Failed emissions tests (for Tier 4/Stage III compliant engines)
- Masked alerts for more serious fault codes
Recommendation: Finish the current job, then diagnose and repair the fault as soon as possible.
DTC P0128: Causes & Solutions Overview
| No. | Cause | Description | Solution |
|---|---|---|---|
| 1 | Stuck-Open Thermostat | The engine warms up too slowly or fails to reach operating temperature. (Most common cause) | Replace the thermostat; refill and bleed the cooling system. |
| 2 | Low Coolant Level | Insufficient coolant or air in the system leads to inaccurate temperature readings. | Fix any leaks, top off with the correct coolant, and bleed the system. |
| 3 | Faulty Coolant Temp Sensor (ECT) | The sensor sends incorrect (low) temperature data to the engine control unit (ECU). | Test and replace the faulty sensor. |
| 4 | Cooling Fan Always On | A fault in the control circuit causes the fan to run constantly, overcooling the engine. | Diagnose and repair the fan control circuit and related components. |
| 5 | Wiring/Connector Fault | A poor electrical connection between the sensor and the ECU disrupts the signal. | Inspect and repair the relevant wiring and connectors. |
How to Diagnose and Fix Code P0128
Safety Reminder: Never open a pressurized radiator when the engine is hot. Always let it cool completely before inspection.
Step 1: Confirm and Inspect
1. Verify the code with a diagnostic scanner. Note any additional codes, like What Is Code P0017 And How to Fix It? or How to Fix Error Code P0037?, which could point to related issues.
2. Check coolant level in both the overflow tank and radiator (engine cold).
- If low → locate and fix leaks first.
- Refill with manufacturer‑approved coolant.
Step 2: Quick Thermostat Test
1. Start the cold engine.
2. Touch the upper radiator hose carefully.
- It should remain cold for several minutes as the engine warms.
- If the hose gets warm immediately, the thermostat is stuck open → Replace it.
Step 3: Check Fans and Sensors
Cooling Fan Test:
If your fan runs at full speed from startup, suspect a stuck fan clutch or bad control relay.
Test ECT Sensor:
- With a scan tool, compare Intake Air Temp (IAT) and Coolant Temp (ECT) readings at startup — they should be nearly identical.
- As the engine warms, ECT should rise steadily.
- Erratic or implausibly low readings → replace the ECT sensor.
Step 4: Replace the Thermostat
- Drain coolant into a clean container.
- Remove thermostat housing (usually at the upper radiator hose).
- Install the new thermostat and gasket in the correct orientation. Pay close attention to any small jiggle pin or bleed valve on the thermostat; it must typically be installed in the 12 o’clock (uppermost) position to allow trapped air to escape.
- Clean and reassemble housing, tightening bolts to spec.
- Refill and bleed the cooling system to remove air pockets.
- Clear the code and test for proper warm‑up.
A functioning thermostat should let coolant temperature climb steadily to ~190°F and remain stable.
Final Tips and Preventive Measures
- Replace your coolant at the manufacturer‑recommended interval.
- Check hoses, clamps, and seals for leaks at every service.
- Always use OEM‑quality thermostats and sensors — cheap parts often fail early.
- After any cooling system service, ensure the heater and fan behave normally before releasing the machine back into duty.
FAQ: P0128 Code in Heavy Equipment
1. Is Code P0128 Serious?
Not immediately, but running too cool can cause long-term efficiency and wear issues. Fix promptly.
2. Does a P0128 Code Mean My Engine Is Overheating?
No. It’s the opposite — your engine is too cold.
3. What’s the Most Common Fix?
Replacing a stuck-open thermostat resolves around 80–90% of P0128 cases.
4. Can a Bad Coolant Sensor Trigger P0128?
Yes. A degraded sensor can send a false “cold” reading to the ECM.
5. How Much Does It Cost to Fix?
- Thermostat replacement: $100–$300 (parts + labor)
- ECT sensor replacement: $50–$150
These are general ranges — exact cost depends on equipment model.
Keep Your Equipment Ready for Work
A P0128 code is one of the easier cooling‑system faults to diagnose — but only if you act early.
By following this guide, you can safely determine whether the issue comes from the thermostat, coolant, or sensor, and fix it before it leads to downtime. Need replacement parts? FridayParts offers high‑quality thermostats, sensors, and coolant components compatible with leading heavy‑equipment engines. Explore reliable, OEM‑grade options and get your machine back to peak performance at FridayParts.com.
