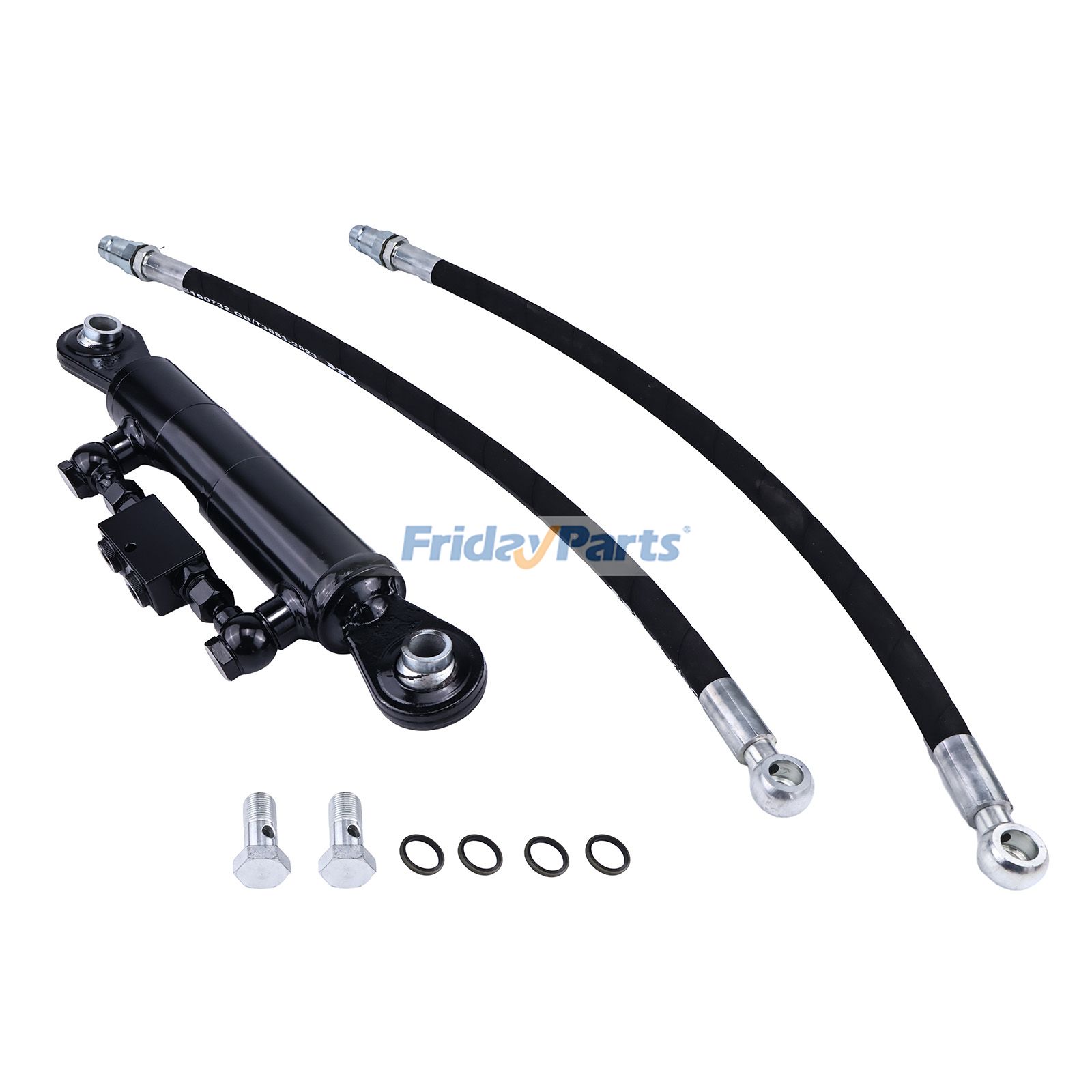

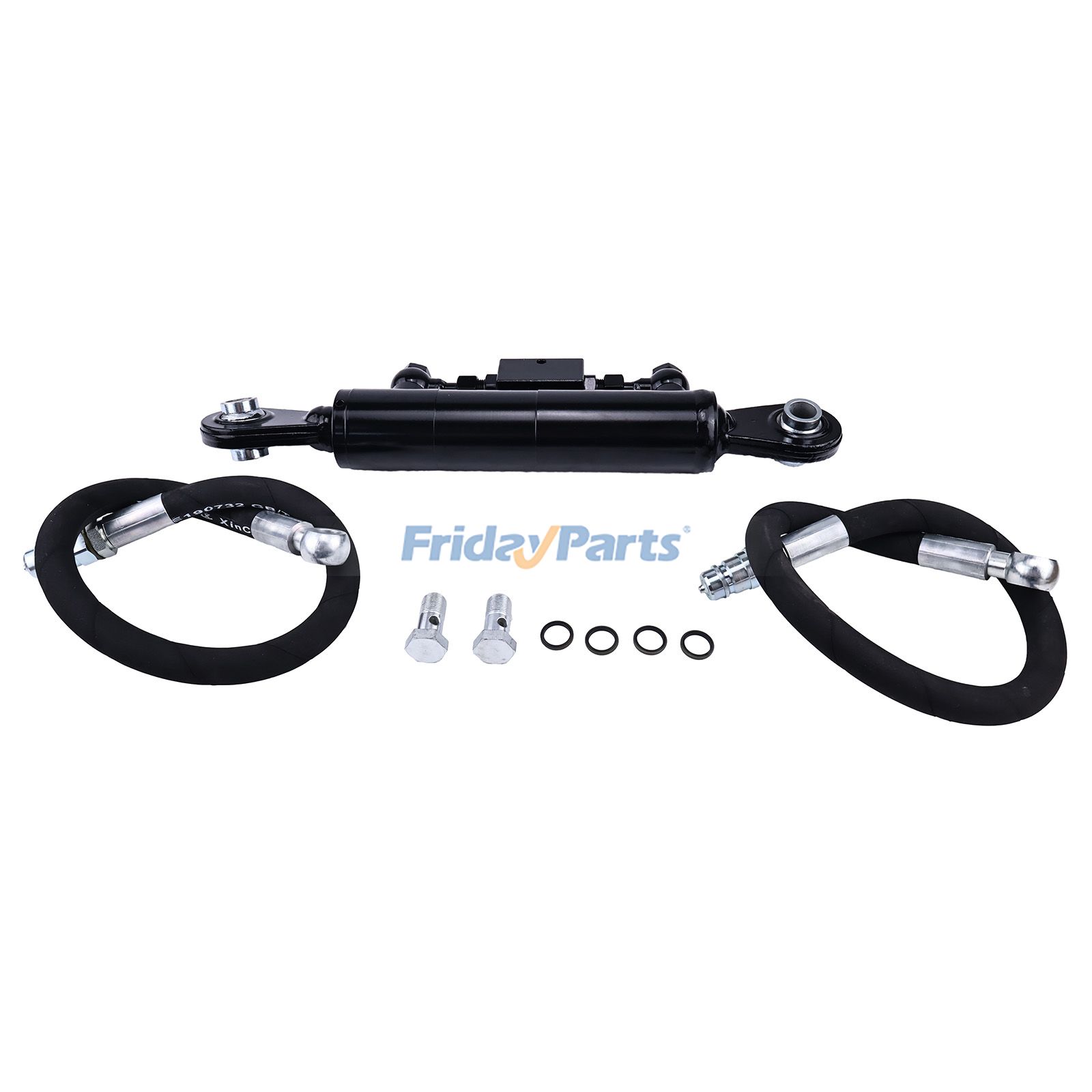

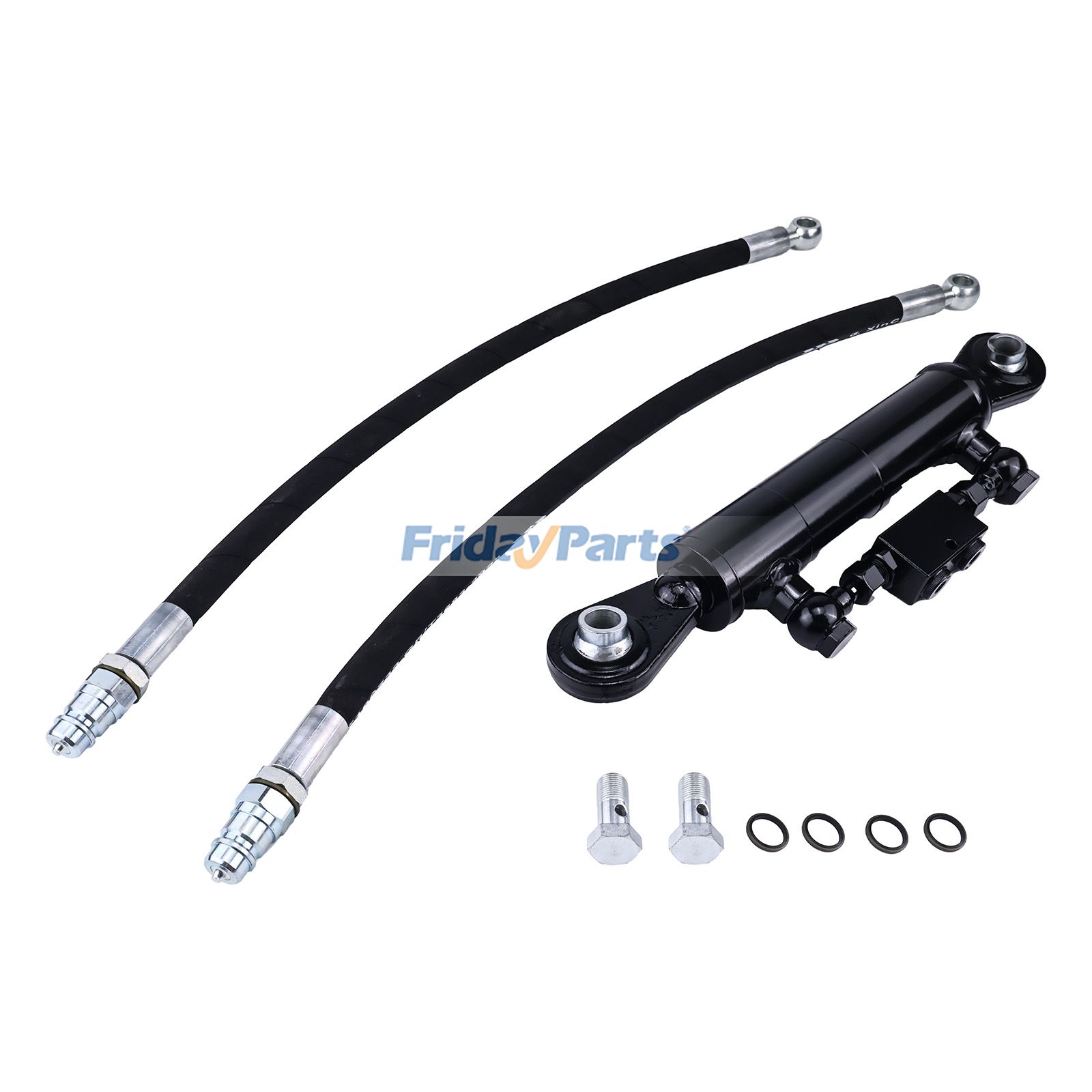

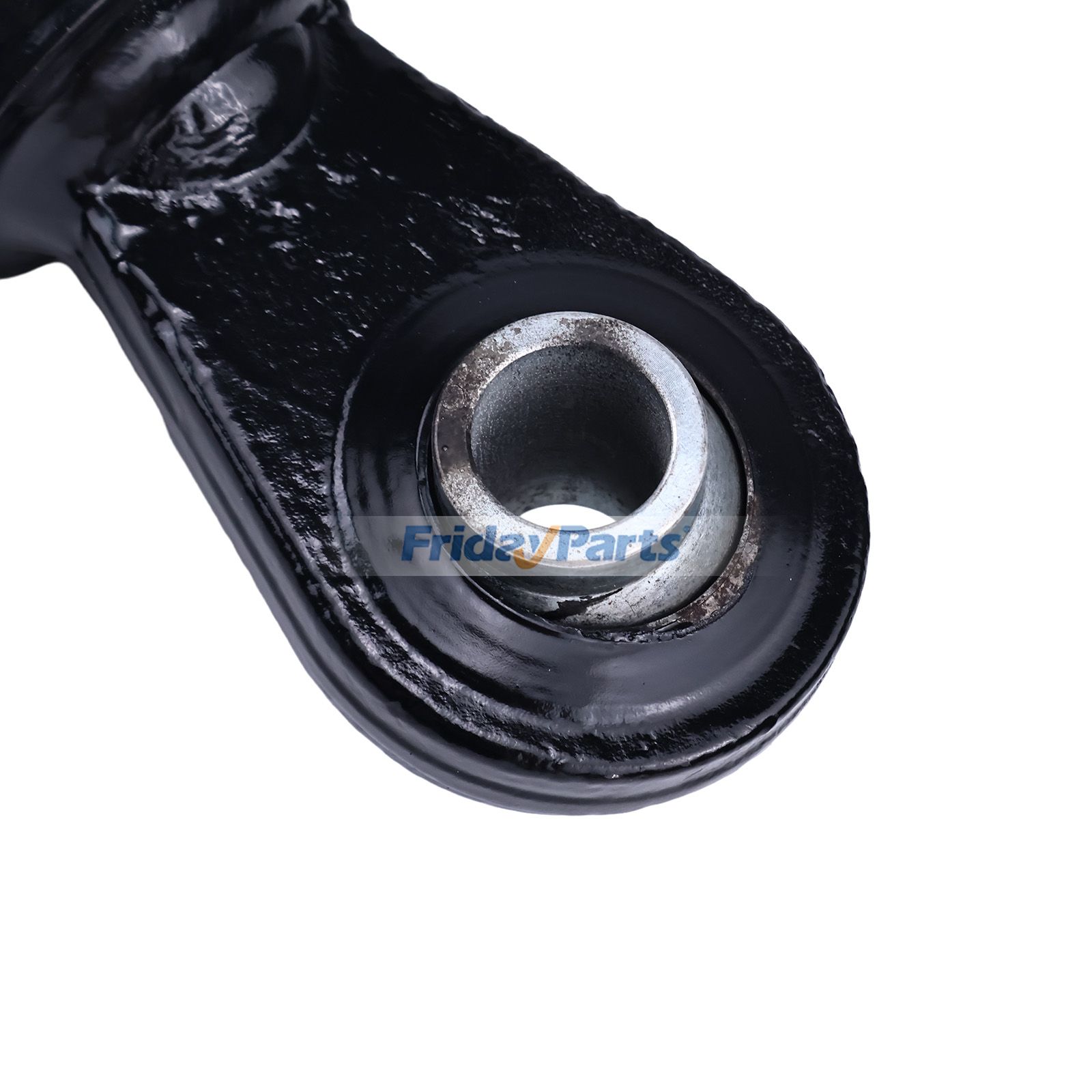

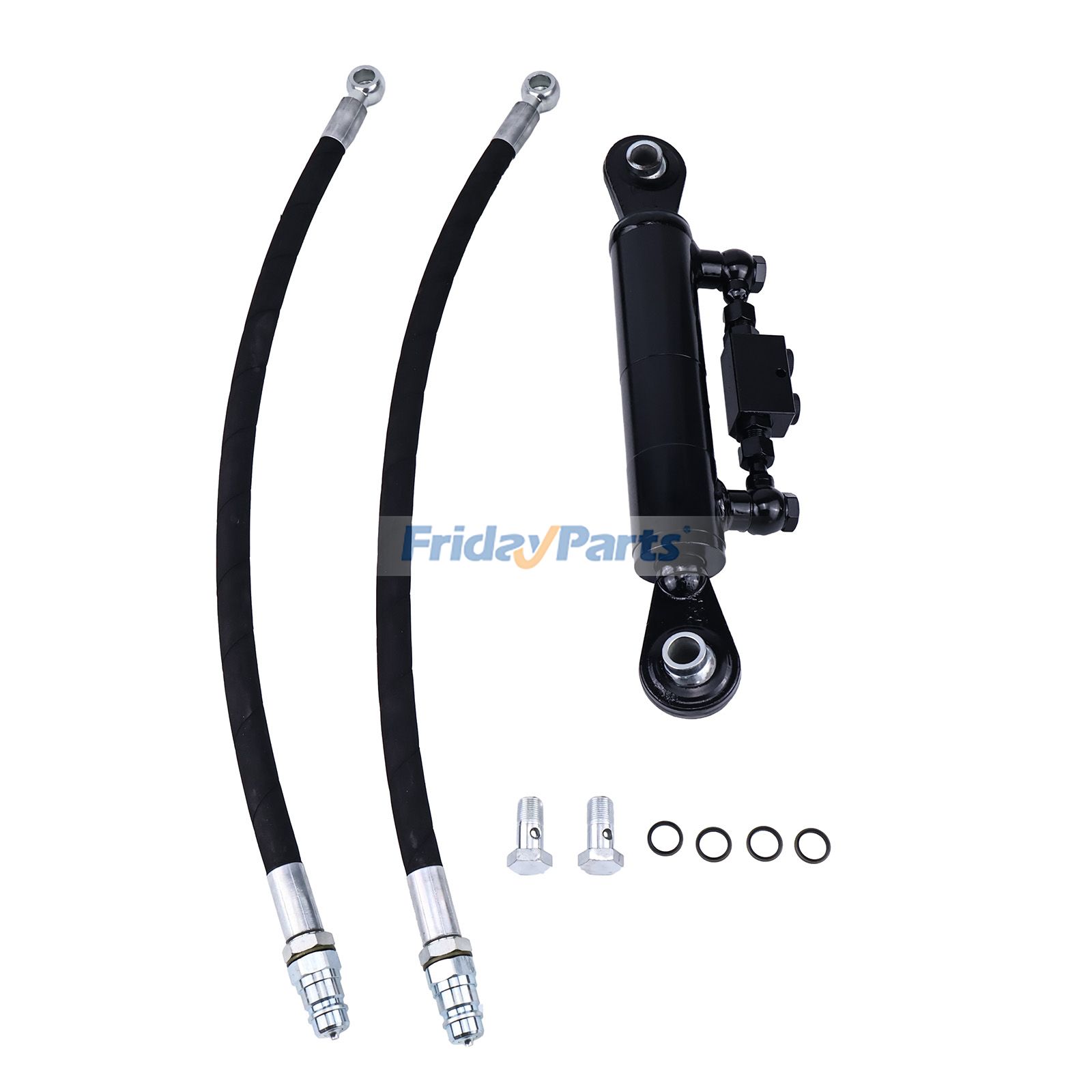

Hydraulic Top Link Cat 1-1 With Locking Block 16-1/8" to 22-7/16" SPH320031
Replacement Part Number: SPH320031
Specification:
Maximum Hydraulic Pressure: 3625 PSI
Operating Hydraulic Pressure: 2610 PSI
Push Force: 7,937 lbs
Pull Force: 5,071 lbs at 2610 PSI pressure
Working Length Range: 16-1/8" to 22-7/16"
Stroke Length: 6-5/16"
Hydraulic Hoses: 3/8" Blue Flex SAE 100 R2AT
Quick Coupler Type: Connection 12-L bulkhead size 3
Hose Length: 29-17/32"
| Brand: | FridayParts |
| Compatible Model Brand: | For OTHER BRAND |
| Replacement Part Number: | SPH320031 |
