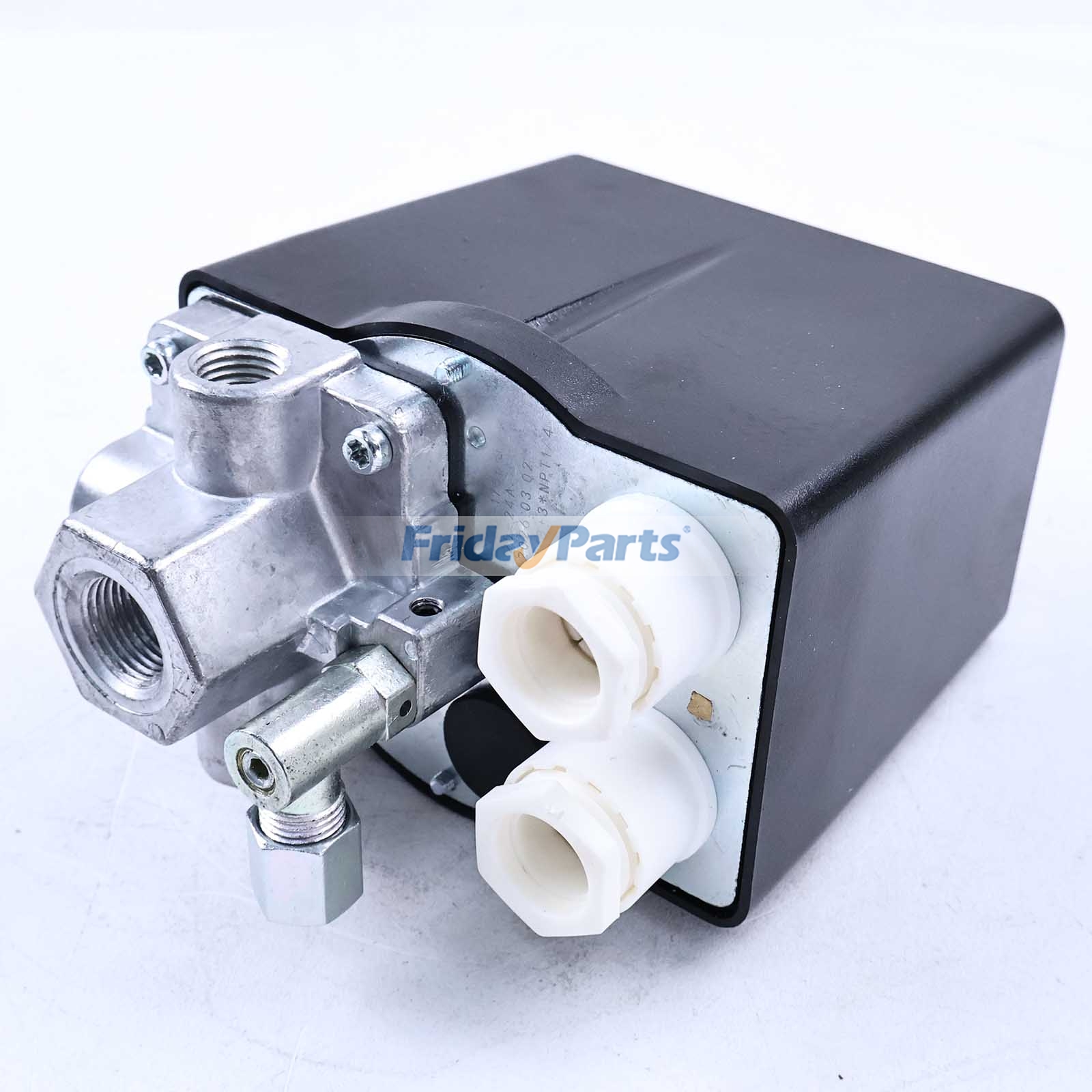

Pressure Switch for Reciprocating Piston Air Compressor - Replaces Condor 31LA3EMX
Model: 31LA3EMX
Specification:
Contact Configuration: DPST (Double Pole, Single Throw)
Rated Insulation Voltage: 690V
Rated Current: 30A @ 240V AC
Operating Voltage: 120/240V AC (Single Phase)
Motor Rating: 2 HP @ 120V / 5 HP @ 240V
Built-in Thermal Overload Protection: 22–30A (Adjustable)
Pressure Cut-In Setting: 140 PSI (10 bar)
Pressure Cut-Out Setting: 175 PSI (12 bar)
Pressure Adjustment Range: 60–232 PSI (4–16 bar)
Differential Pressure Range: 15–70 PSI
Pressure Connection: 1/4 in FPT (NPT, Single Port)
Unloader Valve: 1/4 in 90° Compression Type (EVW)
Protection Rating: NEMA 1 / IP54
Contact Material: Silver Alloy
Electrical Life: More Than 5 × 10⁶ Switching Cycles
Operating Temperature: -30°C to +125°C (-22°F to +257°F)
Applications:
Fit For Reciprocating, Piston Air Compressor
| Brand: | FridayParts |
