Got SPN 2011 FMI 9 popping up on your off-road machine? This guide explains the code, its common causes, and simple step-by-step fixes to get your equipment working reliably once more.

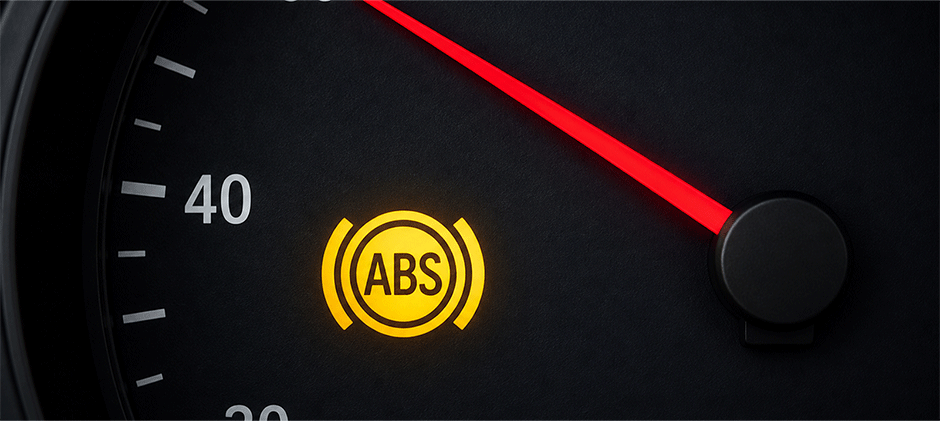

What Is SPN 2011 FMI 9?
- SPN stands for Suspect Parameter Number. On many heavy-duty trucks and off-road machines, SPN 2011 is associated with communication from the ABS (Anti-lock Braking System) control module.
- FMI 9 means Abnormal Update Rate, which indicates that expected data messages are missing or not being received at the normal rate.
SPN 2011 FMI 9 means the machine is no longer receiving the expected J1939 CAN bus messages from the ABS control module. The ABS module is expected to constantly send status messages over the machine’s internal data network (the CAN bus). When these messages suddenly stop or become erratic, the ECM flags this code to alert you that it’s flying blind without critical information from the braking system.
Why Does SPN 2011 FMI 9 Happen?
You don’t always need to replace a costly broken module. Usually the trouble comes down to basic connection problems.
- Loss of power or bad ground to the ABS module: The ABS module requires consistent power and a good ground to work. A blown fuse, corroded wiring or loose ground strap can cut power to the module and shut it down.
- CAN bus wiring faults: All the machine’s control modules communicate via the J1939 CAN bus — two twisted wires running through the equipment. If these wires rub against the frame, get pinched, or connectors corrode, signals from the ABS module won’t make it to the ECM.
- Bad terminating resistors: The CAN bus needs a 120-ohm resistor on each end to run properly. If one of these cheap small resistors fails or has loose connections, it messes up communication across the whole network and triggers multiple fault codes.
- Failed ABS control module: This does happen, but it’s not common. Only suspect a faulty module after you’ve fully checked all wiring and power supply first.
- ECM or other module troubles: Rarely, the main ECM or another network module causes communication interference. Recent software updates or incorrect settings can also create this issue.
How to Fix SPN 2011 FMI 9?
Follow this clear step-by-step process to diagnose and repair the fault code. You’ll need a digital multimeter for these tests.
1: Check All Active Fault Codes
Before digging into SPN 2011 FMI 9, pull up every active code. Watch closely for these:
- Battery voltage codes (such as SPN 168): Codes for low or fluctuating voltage need to be fixed first. No control module can communicate well without stable power.
- General CAN bus codes (such as SPN 625): This code means there’s trouble with the main data cable. If it shows up, you’re almost certainly dealing with wiring issues.
2: Check Power to the ABS Module
- Find your machine’s fuse box and locate the fuse for the ABS or brake control module. Give it a visual check, and use your multimeter to test continuity.
- If the fuse is fine, check power right at the ABS module. Unplug its main wiring connector.
- Turn the key on, then use your multimeter to test the connector pins. You’ll need your service manual to find the power and ground pins.
- You should get full battery voltage on the power pin and a clean ground connection. If power is missing or the ground is bad, trace the wire to find breaks or corrosion.
3: Inspect the J1939 CAN Bus Wiring
- CAN bus cables come as a twisted wire pair. Look over the wiring harness running between the ECM and ABS module. Check for spots where wires rub against the frame, hydraulic hoses or other parts.
- Examine connectors on both the ECM and ABS module. Watch for chalky green or white corrosion on pins — this means water damage. Also make sure pins are not bent or pushed inside the connector.
- For a deeper test, measure CAN bus resistance. Turn the key off, then test resistance between CAN High and CAN Low at the diagnostic port. A healthy network reads around 60 ohms. A reading near 120 ohms means one terminating resistor is missing. Any other reading points to a short in the wiring.
4: Test If the Module Is Faulty
If the ABS module gets steady power, good ground and all wiring looks okay, the module itself is likely the problem. You can try unplugging the module and see if other communication fault codes change. If everything points to a failed module, replace it.
How to Avoid SPN 2011 FMI 9 Happening Again?
Good preventative maintenance keeps electronics reliable on heavy-duty off-road machines.
- Shield your connectors: When pressure washing the equipment, never spray directly onto electrical connectors. After washing, disconnect key connectors, let them dry fully, then add a light coat of dielectric grease to block moisture.
- Secure wiring harnesses: Check wiring regularly. If any harness hangs loose or rubs against metal parts, fasten it down with zip ties or clamps to stop wear later on.
- Fix leaks right away: Hydraulic and fluid leaks slowly eat away wire insulation. Repairing leaks saves fluid and protects your whole electrical system.
Wrapping Up
The SPN 2011 FMI 9 fault code signals a loss of communication with your ABS module. By systematically checking for power, ground, and wiring integrity before condemning the module itself, you can accurately diagnose the issue. Taking preventative steps to protect your machine’s electrical system will save you significant downtime in the future. Should you need a connector or other parts? FridayParts provides high-quality, durable parts for a wide range of heavy equipment brands, ensuring you get an affordable and reliable fix.
